Vanlivings Emberstone 3D Water Vapor Fireplace

$1,180.00
Shipping calculated at checkout.

Contact us

Email:support@Vanlivings.com

Delivery and Shipping

In-stock products: 20-25 days for shipping.
Out-of-stock products: 20-25 days for production, plus 20-25 days for shipping.

Intelligent Technology for Cleaner, Safer, More Realistic Flames

  • Intelligent Safety Protection

    Constant-temperature control, IPX4 splash resistance, wet-dry separation, and low-water shutoff support safer operation.

  • Nano-Mist Technology

    Ultra-fine vapor disperses rapidly, creating a gentle atmospheric effect without leaving nearby furniture or surfaces damp.

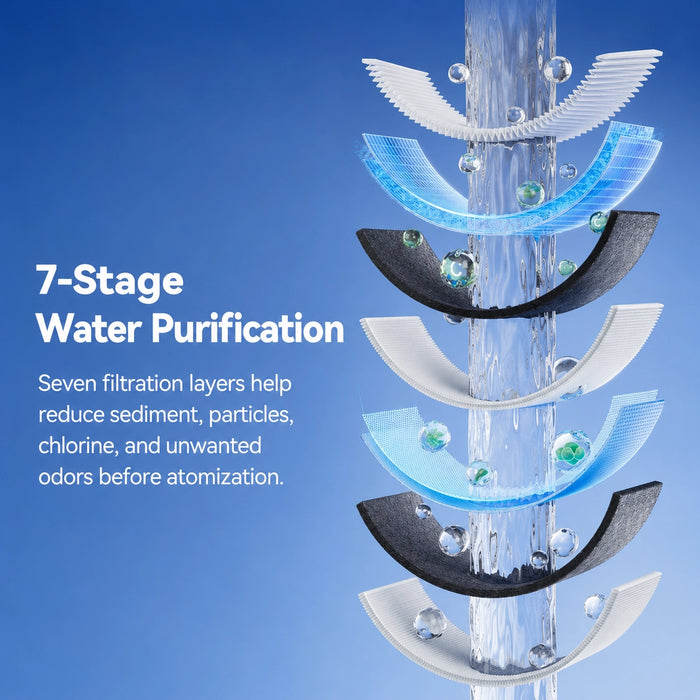

  • 7-Stage Water Purification

    Seven filtration layers help reduce sediment, particles, chlorine, and unwanted odors before the water reaches the atomization system.

  • Built-In UV Water Treatment

    Integrated UV treatment helps limit microbial growth inside the water system for cleaner, more reliable operation.

  • Six Flame Color Modes

    Choose from red, gold, blue, white, purple, and green flame effects to match your interior.

  • Smart App Control

    Control the flame, lighting, water functions, UV sterilization, water level, and timer from your phone.

Built-in linear fireplace dimensions A black built-in fireplace shown in perspective with overall length, depth, and height dimension lines. Overall Length: 27.56–118.11 in 700–3000 mm 6.30 in (160 mm) Top Depth: 9.45 in 240 mm
Illustration shows the installation dimensions; product length varies by selected model.
Installation & sizing

Choose the right size before you build

Select the fireplace by its overall panel length, then prepare the matching rough opening. Inches are listed first for quick reference, with exact metric dimensions underneath.

Available lengths27.56–118.11 in700–3000 mm
Top panel depth9.45 in240 mm
Firebox depth7.87 in200 mm
Firebox height6.30 in160 mm
Size chart

Required rough opening

Find your selected fireplace length and use the opening dimensions shown on the same row.

Opening order: L Ă— D Ă— H
Fireplace lengthRequired rough opening
0127.56 in700 mm
26.38 Ă— 8.27 Ă— 6.69 in670 Ă— 210 Ă— 170 mm
0231.50 in800 mm
30.31 Ă— 8.27 Ă— 6.69 in770 Ă— 210 Ă— 170 mm
0339.37 in1000 mm
38.19 Ă— 8.27 Ă— 6.69 in970 Ă— 210 Ă— 170 mm
0447.24 in1200 mm
46.06 Ă— 8.27 Ă— 6.69 in1170 Ă— 210 Ă— 170 mm
0559.06 in1500 mm
57.87 Ă— 8.27 Ă— 6.69 in1470 Ă— 210 Ă— 170 mm
0670.87 in1800 mm
69.69 Ă— 8.27 Ă— 6.69 in1770 Ă— 210 Ă— 170 mm
0778.74 in2000 mm
77.56 Ă— 8.27 Ă— 6.69 in1970 Ă— 210 Ă— 170 mm
0898.43 in2500 mm
97.24 Ă— 8.27 Ă— 6.69 in2470 Ă— 210 Ă— 170 mm
09118.11 in3000 mm
116.93 Ă— 8.27 Ă— 6.69 in2970 Ă— 210 Ă— 170 mm

Verify all measurements before cutting. Custom sizes are available—contact customer service for assistance.
